Cadence vs. Torque Sensors

Every pedal-assist e-bike has one job that defines how it feels to ride: deciding when and how much to add power. That decision is made by a small component most riders never think about — the pedal-assist sensor. There are two main types, the cadence sensor and the torque sensor, and the difference between them shapes everything from how natural the bike feels to how you diagnose a problem when something goes wrong.

This guide explains how each one works, how they compare, how to spot a failing sensor, and what your repair options are. We'll use real examples from our own lineup — the Kimdyma K01 / K02, which use torque sensors, and the K03 Ranger, which uses a cadence sensor — to keep things concrete.

How a torque sensor works

A torque sensor uses a strain gauge — a component that measures tiny physical deformations — usually built into the bottom bracket axle or rear dropout. As you press on the pedals, the axle flexes by a microscopic amount, and the strain gauge converts that flex into a force reading, hundreds of times per second.

The controller then delivers power in proportion to your effort. Pedal softly and you get a soft boost; push hard up a climb and the motor pushes hard with you. The assist scales smoothly and continuously, with no steps and almost no lag, because the system is responding to force rather than waiting to count crank rotations.

This is the system in the Kimdyma K01 Titan X and K02 Aurora S. The result is a ride that feels less like a motor switching on and off and more like your own legs simply got stronger — a natural, planted, "amplified rider" sensation. That's why torque sensors are the standard on premium road, city, and trekking e-bikes where ride quality is the headline feature.

Strengths of torque systems:

• Smooth, natural, proportional assist — the bike responds to you
• Near-instant response with no perceptible lag
• More efficient: power tracks effort, so you often get more range from the same battery
• More intuitive control — you modulate power with your legs, not the buttons

Trade-offs:

• More expensive and more complex
• The strain gauge is a precision component; if it drifts or fails, symptoms can be subtle and harder to diagnose
• Replacement parts cost more and installation is more involved

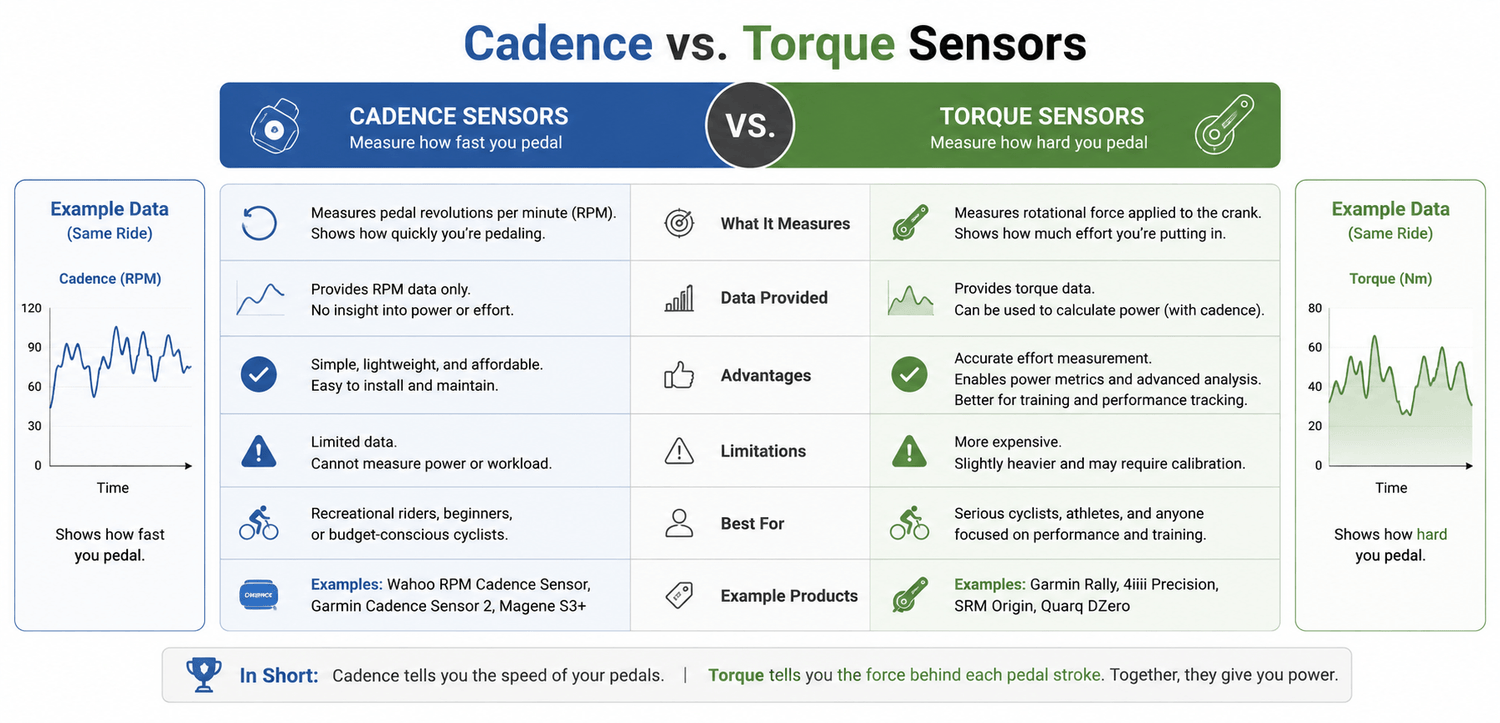

Side-by-side comparison

How to tell which sensor your bike has

If you're not sure, three quick checks:

1. The pedal test (on a stand or safe open space): Turn the cranks slowly by hand with light pressure. If the motor kicks in at a fixed power as soon as the cranks move — regardless of how hard you press — it's a cadence sensor. If the power scales up the harder you push, it's a torque sensor.
2. The spec sheet: Look for "torque sensor" or "strain gauge" vs. "cadence sensor." (On Kimdyma bikes, K01/K02 list a torque sensor; K03 lists a cadence sensor.)
3. The feel: Cadence feels like a consistent push that you dial up and down with the buttons. Torque feels like your legs got stronger — the harder you work, the more it gives.

Recognizing a failing sensor

Sensor problems often masquerade as other issues, so it helps to know the signatures.

Cadence sensor symptoms:

• Assist doesn't engage at all, or engages erratically
• Power cuts in and out while pedaling steadily
• Long delay before the motor responds
• Usual cause: the magnet ring has shifted, a magnet is dislodged, the sensor-to-magnet gap is wrong, or a connector has worked loose

Torque sensor symptoms:

• Assist feels jerky, uneven, or "non-linear" — surging or hesitating instead of scaling smoothly
• Power that's too strong or too weak for your effort
• A "dead spot" or inconsistent boost
• Sometimes a calibration that has drifted rather than a hard failure

An important caution — don't confuse mechanical noise with a sensor fault. Because both sensor types live in or near the bottom bracket, mechanical problems there are very easy to misdiagnose as sensor failures. A clicking, knocking, or creaking sound combined with uneven power delivery is, more often than not, a loose crank arm or bottom bracket — not a dead sensor. We see this regularly in support: a rider reports "the torque sensor is jerking and clicking," and the real fix is torquing the crank bolts and bottom bracket to spec. Always rule out the mechanical side first — it's cheaper, faster, and far more common.

Basic troubleshooting before you replace anything

Work through these in order. Many "sensor" problems never make it past step 3.

1. Power-cycle the system. Turn the bike fully off and on. Controllers can hold a bad reading until reset.
2. Check the crank and bottom bracket. With the bike on a stand, grab each crank arm and try to wobble it side to side. Any play means the crank or BB needs tightening to spec. This alone resolves a large share of "jerking + clicking" complaints.
3. Inspect the sensor and connectors. Look for a loose, corroded, or unseated connector near the bottom bracket. Reseat anything suspicious. For cadence systems, check that the magnet ring is intact and the gap to the sensor is even.
4. Look for a calibration routine. Some torque-sensor bikes have a "zero" or calibration procedure in the display menu. A drifted torque sensor can sometimes be recalibrated rather than replaced — check your display manual. (For Kimdyma K01/K02, see the KT-LCD display manual.)
5. Test in a different PAS level / mode. This helps separate a controller or display setting from a true sensor fault.

If the cranks are tight, connectors are clean, the system has been reset and recalibrated, and the problem still persists — then you're likely looking at a genuine sensor fault.

Repairing or replacing a sensor

Cadence sensors are generally the easier and cheaper fix. Often the repair is just repositioning the magnet ring or correcting the sensor gap; an actual replacement part is inexpensive and the swap is well within reach of a confident home mechanic with basic tools.

Torque sensors are more involved. The strain gauge is usually integrated into the bottom bracket assembly, so replacement often means removing the cranks and bottom bracket and fitting a matched unit. It calls for the right tools (crank puller, BB tool), a torque wrench, and care to get a clean install. Some riders are comfortable doing this themselves; others prefer a shop.

A few rules that apply to both:

• Match the part to the bike. Sensors are not universal — voltage, connector type, and protocol must match your controller and display. A torque sensor won't work on a cadence-based bike and vice versa.
• Tighten to spec. A torque wrench matters here, especially for torque-sensor bikes where the bottom bracket is part of the measurement system.
• Don't skip the cheap checks. Replacing a sensor that wasn't actually broken is the most common wasted repair in this category.

Where to get the right part

If you've confirmed a sensor fault, source the part for your specific model rather than a generic substitute. For Kimdyma owners:

• Bought directly from us (kimdyma.com): your bike is covered under the official KIMDYMA warranty — contact support and we'll handle it.
• Bought through one of our authorized distributors (such as AliExpress): you're still covered. We supply our distributors with warranty parts, so the fastest route is to open a warranty request directly with the seller you purchased from, with a short video of the issue attached. They'll process the claim and arrange the correct part.

Either way, send a short video of the symptom plus a photo of the bottom bracket area — it speeds up diagnosis enormously and helps confirm whether you need a sensor at all, or just a torque-wrench fix.

The bottom line

Cadence and torque sensors are two different philosophies of assistance. Cadence gives you a strong, simple, predictable push — ideal for off-road and utility riding, which is why it's on the K03 Ranger. Torque gives you smooth, proportional, natural power that responds to your own effort — the premium ride feel behind the K01 Titan X and K02 Aurora S. Knowing which one you have makes you a better rider and a better troubleshooter: when something feels off, you'll know what's normal, what isn't, and — crucially — when to reach for a torque wrench before reaching for a new sensor.
