Save €100,00
€1.499,00€1.599,00
Choose options
80Nm
Motor torque
960Wh
Battery capacity
130km
Maximum range
38km/h
Top assist speed
500W
Rated motor power
150mm
Suspension travel
In full
Complete specifications
Motor, battery, geometry, fit range — grouped the way the parameters are catalogued. A blank row means this bike does not have that feature.
Drive
| Motor torque | 80Nm |
|---|---|
| Rated motor power | 500W |
| Peak motor power | 1000W |
| Top assist speed | 38km/h |
| Max gradient | 30% |
| Sensor type | Torque sensor |
| Torque spec |
|
| Assist modes | Turbo, Tour, Eco, Sport |
Battery & range
| Battery brand | Samsung |
|---|---|
| Battery capacity | 960Wh |
| Removable battery | Yes |
| Charge time | 6–8 hh |
| Maximum range | 130km |
Ride

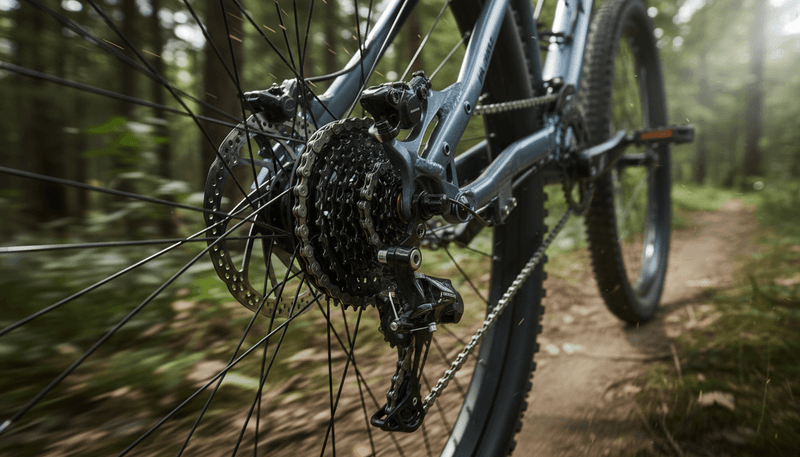

| Drivetrain | Traditional Chain & Derailleur |
|---|---|
| Gears | SHIMANO TX30/TZ500 front and rear derailleurs |

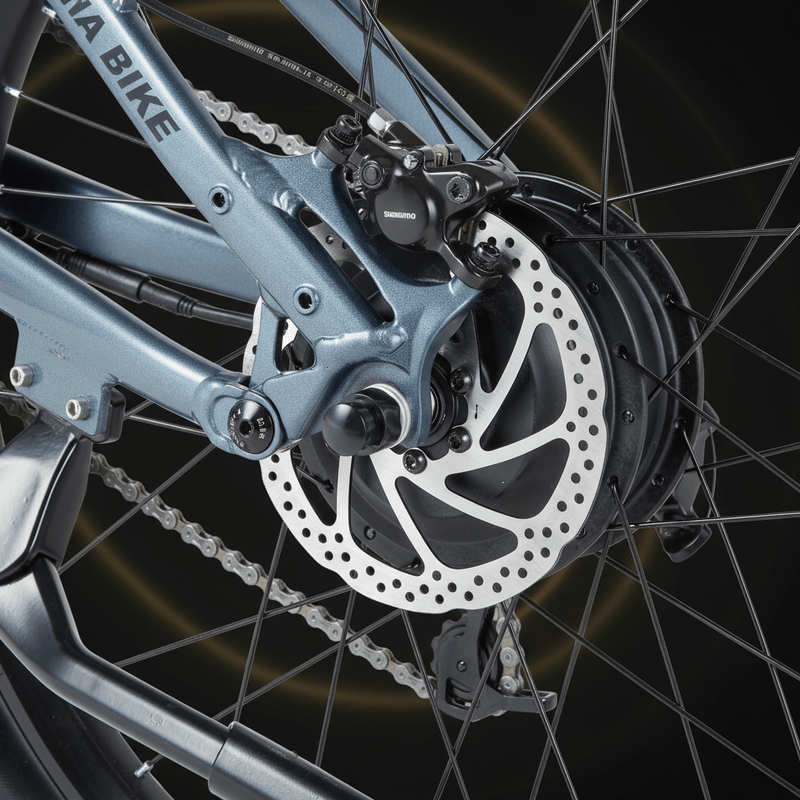

| Brakes | Shimano MT200 |

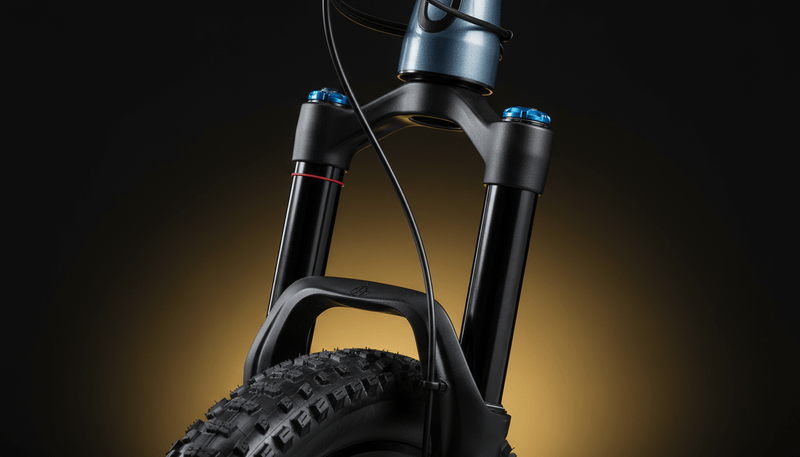

| Suspension travel | 150mm |
| Tire size | 27.5” × 2.8” |

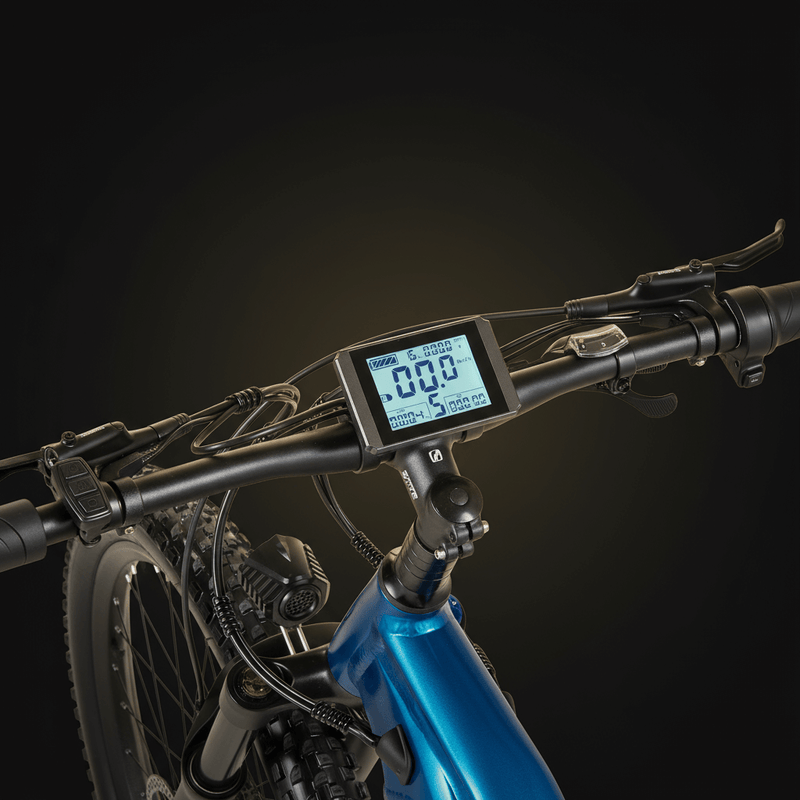

| Display | KT-LCD10H |
| Lighting | LED headlightRear: External tail light with brake activation |
Frame
| Frame material | Aluminum |
|---|---|
| Weight | 30.5kg |
| Maximum load | 150 kg (rider + bike + cargo)kg |

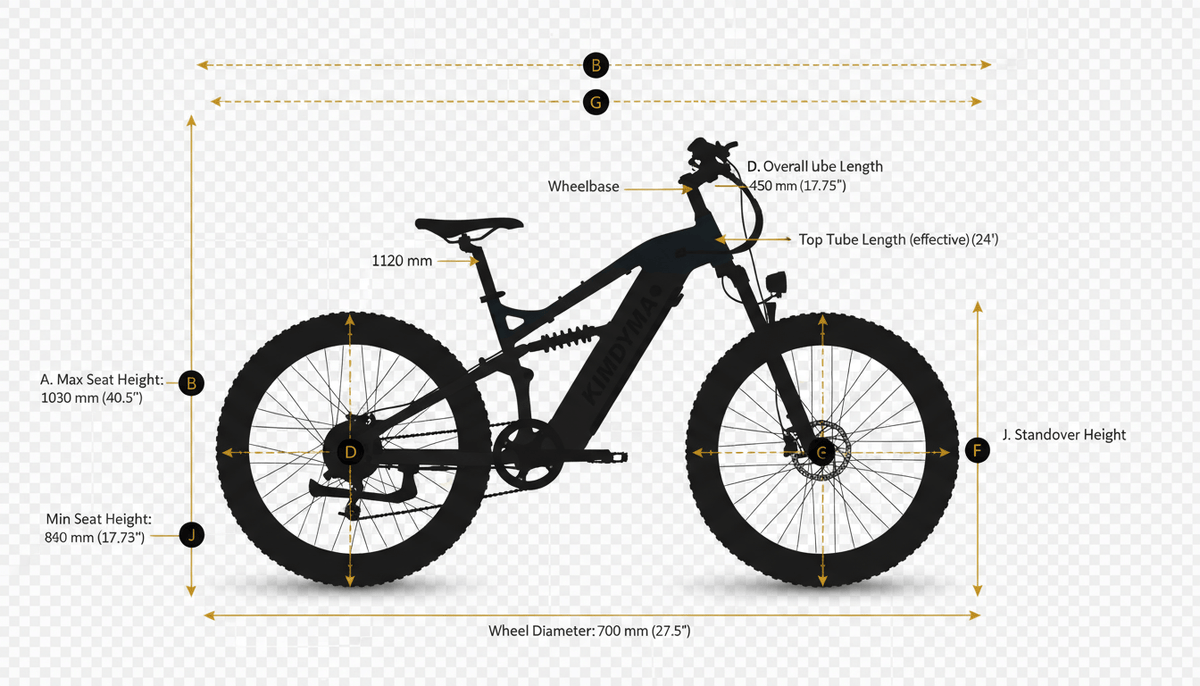

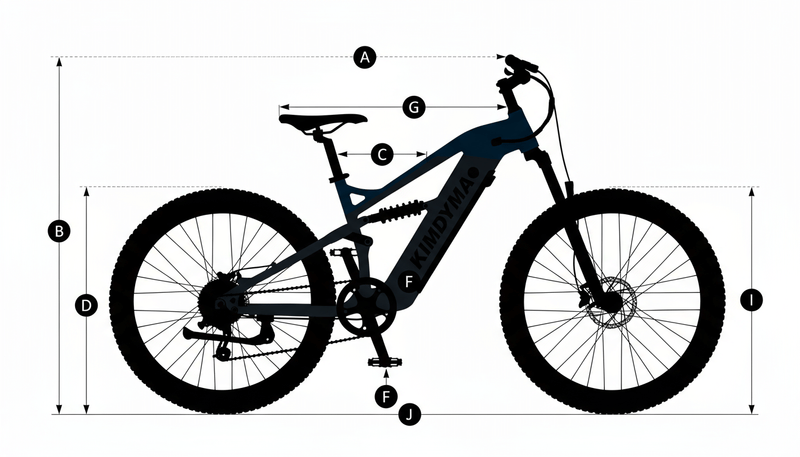

Geometry
| Reach | 610mm |
|---|---|
| Stack | 840mm |
| Wheelbase | 1220mm |
| Handlebar width | 1110mm |
| Seatpost | 840-1100mm |
Fit
| Rider height | 178-190cm |
|---|---|
| Minimum rider height | 178cm |
| Maximum rider height | 190cm |
| Frame sizes | M 44 cm, S |
Certification
| Certifications | CE / EN 15194 / IPX5 |
|---|---|
| IP rating | IP65 |
Range figures are measured in eco mode on flat ground at 20 °C with a 75 kg rider and will differ in use.
In three
What makes the K01 this bike
Three things that define this model, each ending on a measurement from the specification table below — not an adjective.
500 W motor, 38 km/h assist
Rated power is the continuous output the motor can hold without overheating — the figure that matters on a long climb. Peak power is higher but cannot be sustained. Top assist speed is the point at which the motor stops adding power; you can pedal faster, but without assistance.
500W
Rated motor power
38km/h
Top assist speed
960Wh
Battery capacity
Torque sensor
Reads how hard you push and scales assist to match — so the motor responds to effort, not just cadence. The difference shows on climbs and in traffic.
30%
Max gradient
130km
Maximum range
Torque sensor
Sensor type
Fit range and geometry
Seatpost adjusts from 840 to 1100 mm; wheelbase is 1220 mm. Both figures are in the geometry table below.
178-190cm
Rider height
840-1100mm
Seatpost
1220mm
Wheelbase

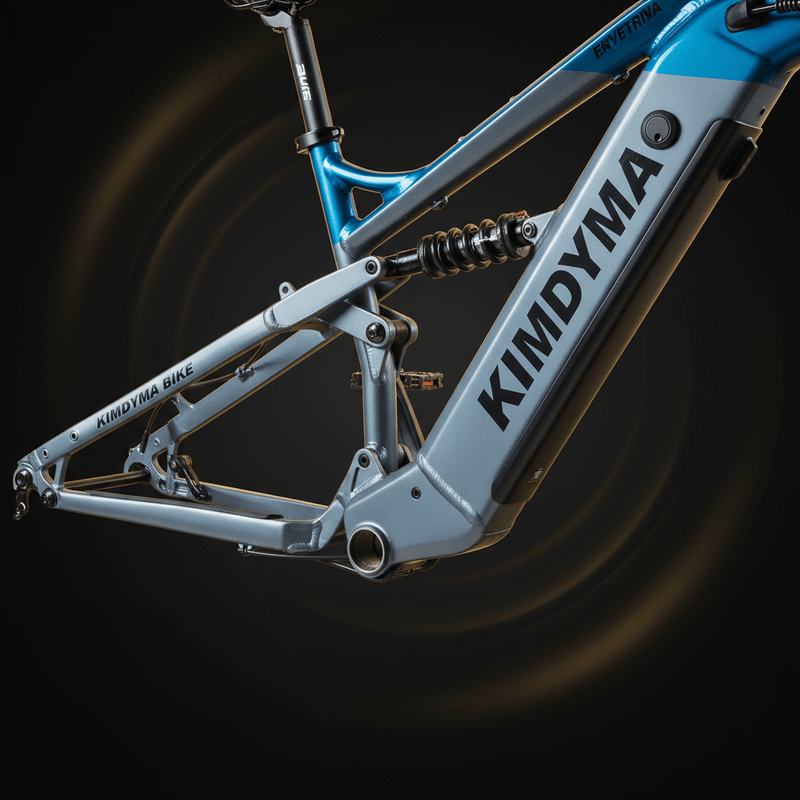

Aluminium alloy frame
960 Wh Samsung battery in the downtube
Removable with key lock. The same battery fits all three models in the range.
960Wh
Battery capacity
38km/h
Top assist speed
500W
Rated motor power

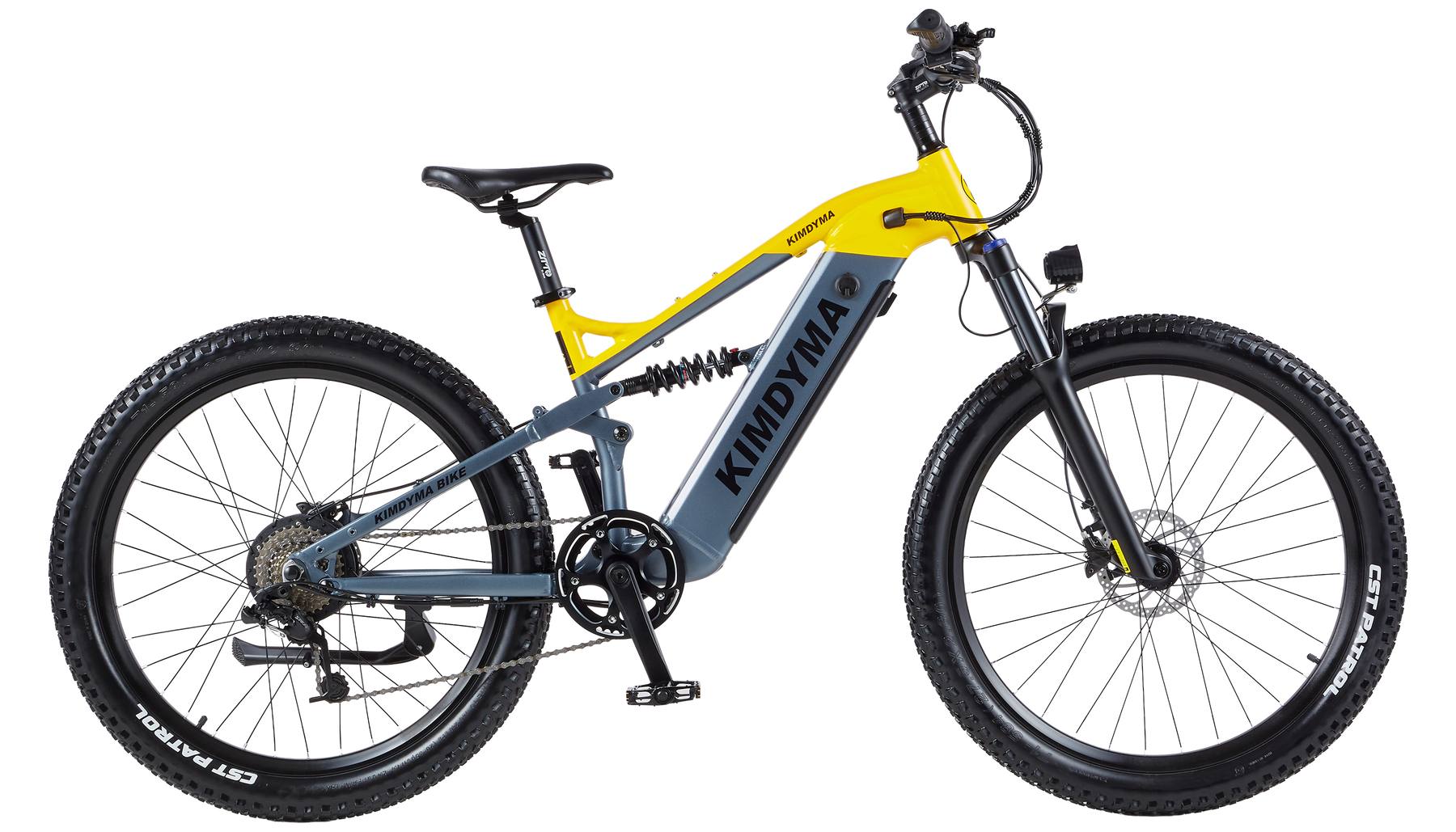

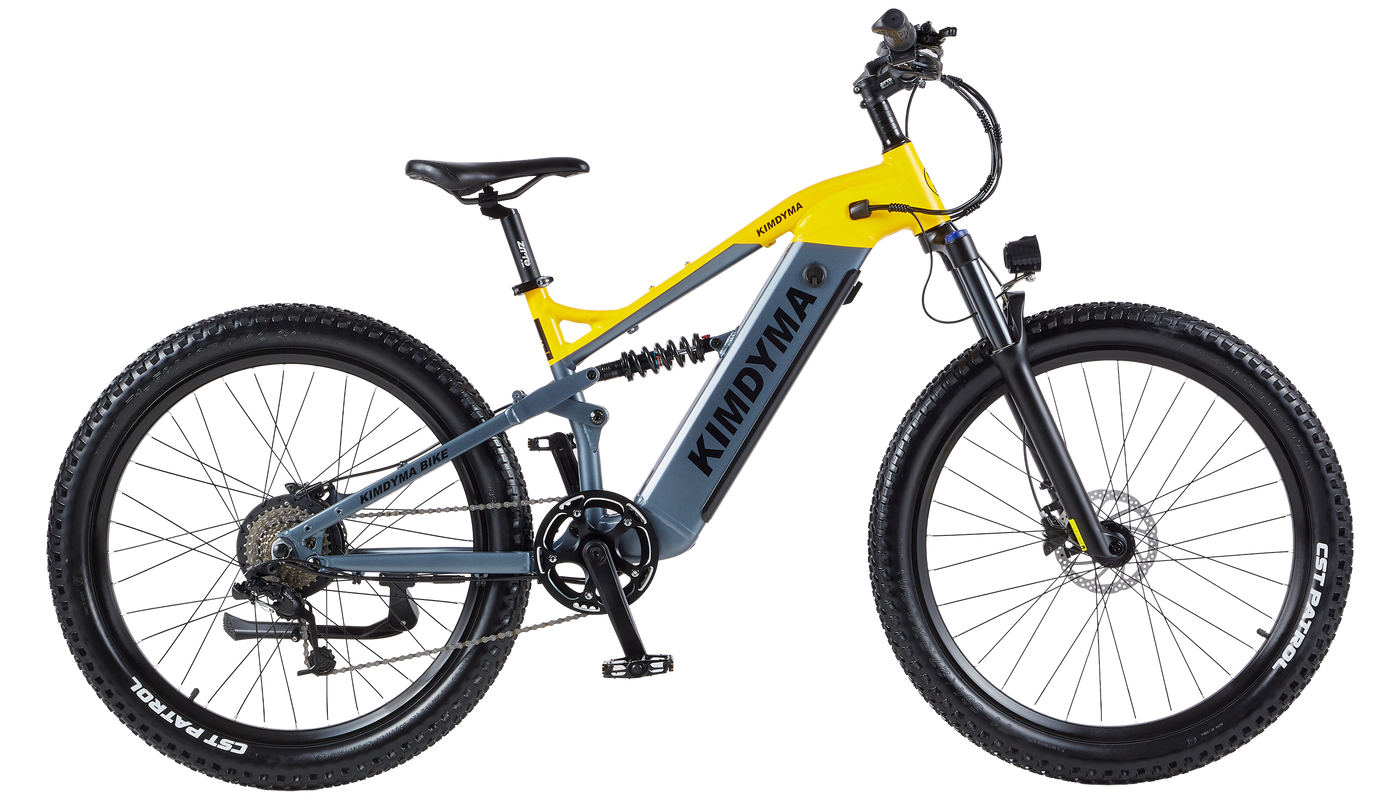

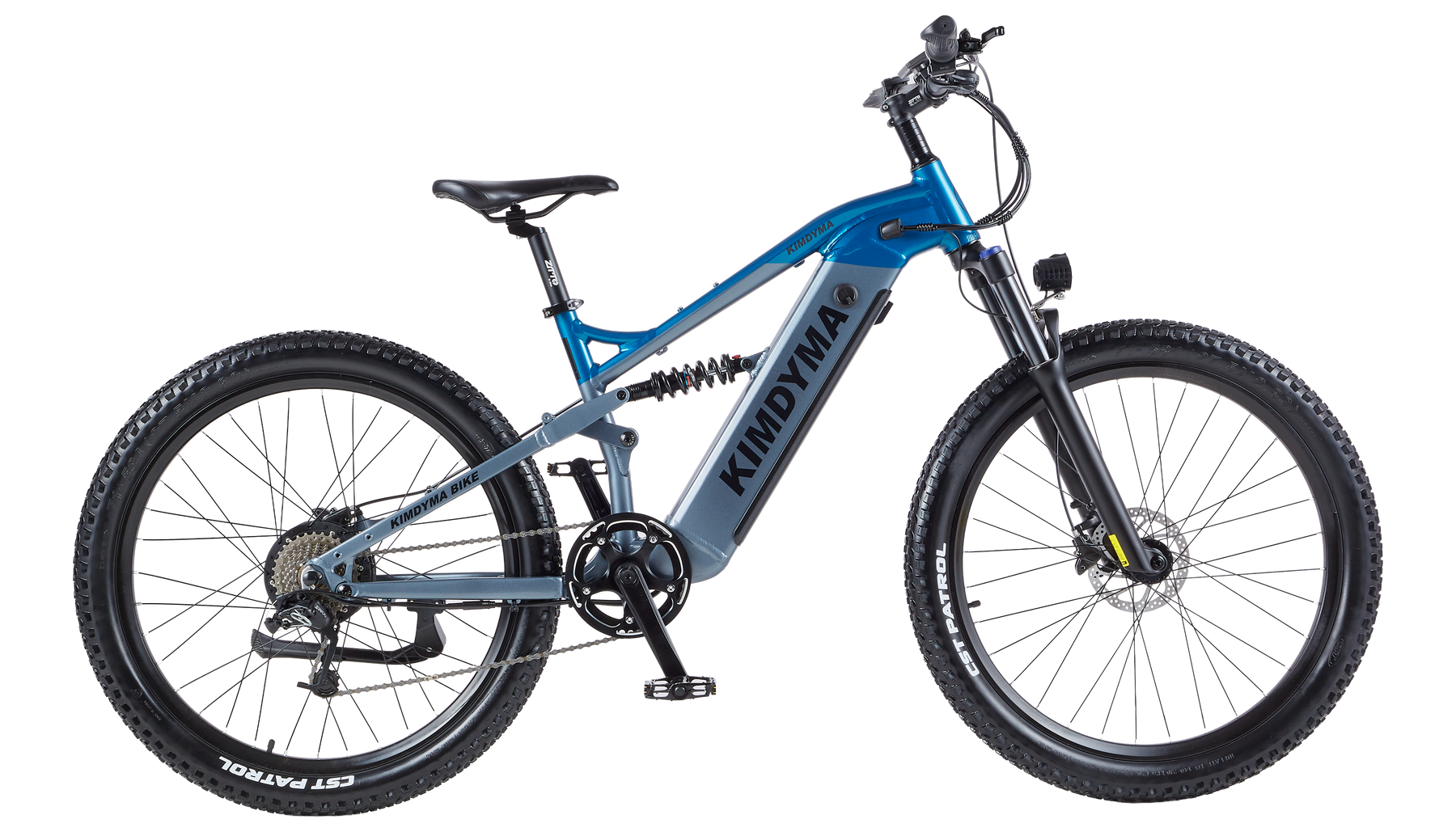

K01 detail
The parts that define this model
Torque sensor, Samsung battery, Shimano drivetrain — the components that make the K01 a trail bike. Press any part to see it full-size.
1 / 5
Where it is meant to go
Three surfaces, and one it is not for
A bike that claims every surface is a bike that has been described by its marketing rather than ridden.
Gravel road
2°

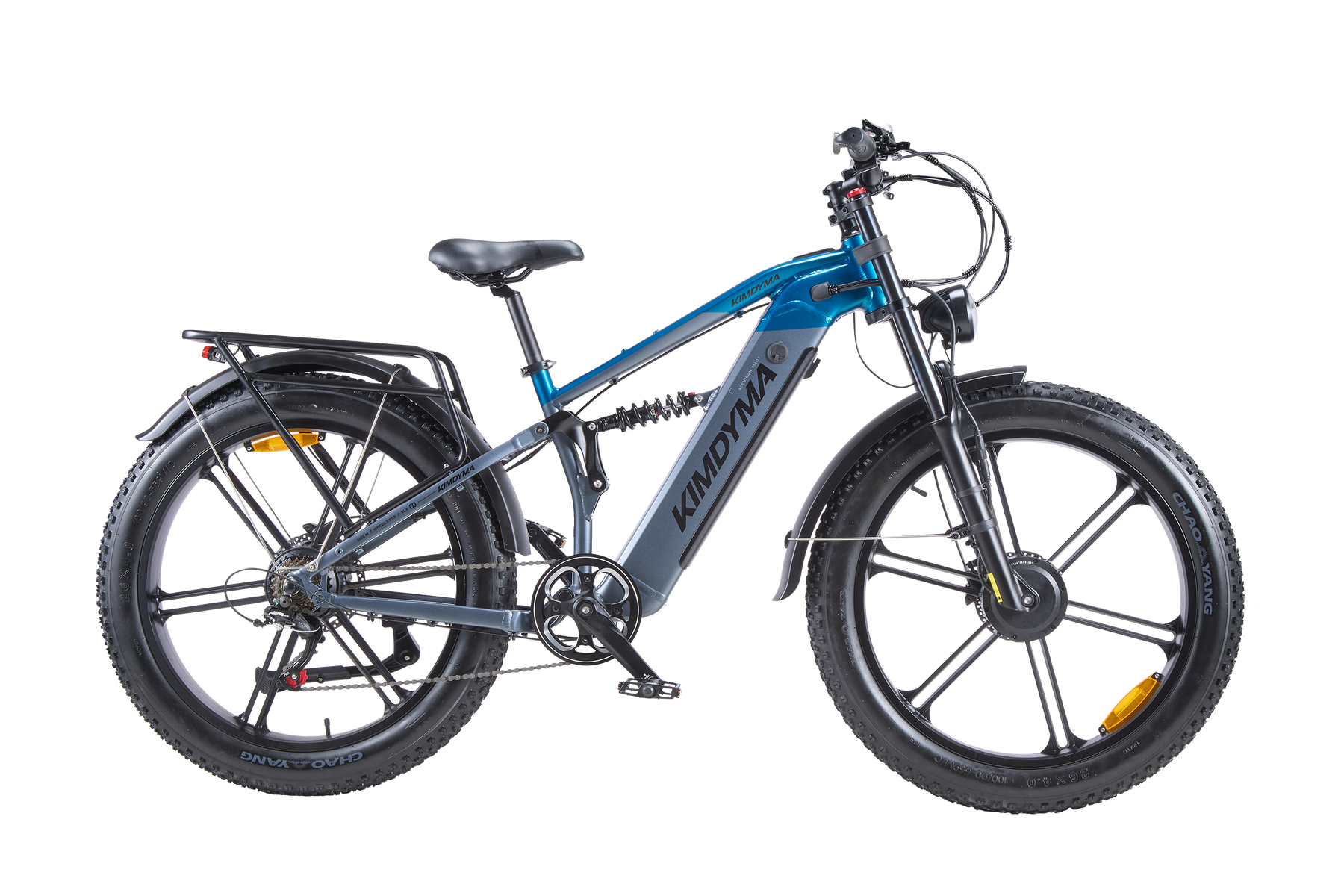

Rough roadNot for snow or sand. The K03 Ranger carries 26 × 4.0 fat tires for that.
How you sit on it
Stack decides which frame fits your height
Stack is how high the bars sit above the bottom bracket. It is the difference you feel before you turn a pedal. Drag your height to see which frame answers.
840
High-thru
710
Step-through
910
Fat-tyre
BarsStack is the vertical distance from the bottom bracket to the top of the head tube — it sets how high the bars sit relative to your feet. A taller stack means a more upright position; a shorter stack puts you forward. The K01's stack is 840 mm, which places the bars at 1110 mm above the ground when the stem is fitted. This figure comes from the geometry table and defines the 178–190 cm rider band.
What it will carry
Rated to the total, not to the luggage
It counts everything: you, what you are wearing, what is on the rack, and the bike itself before any of it.
of the rated total, with the bike's own weight already counted
This bike is not designed for trailer towing. For cargo capacity questions beyond the rated total, contact us.
Four assist modes
What each mode does
Eco stretches the battery; Turbo climbs faster but drains it. Each step up trades range for power — the choice is how much of the pack a hill costs you.
100kmEcoLowest power draw, longest range. The motor adds just enough to flatten the road — you are still doing most of the work.
70kmTourBalanced power and range. The motor does half the work — enough to hold speed on gentle climbs without draining the pack on flat ground.
60kmSport60% assist — motor matches your effort more closely. Responsive on variable terrain but uses the battery faster than Tour.
35kmTurboMaximum power output — 100% assist. The motor delivers its full rated capacity to match your pedaling effort. Climbs are fastest here, but range drops sharply. This is the mode that costs you the most battery per kilometer.
Top assist speed is 25 km/h in most EU markets. The motor stops adding power at that point; you can pedal faster, but without assistance. Tampering with the speed limiter is illegal for road use in the EU and voids the warranty.
The charge clock
Plug it in when you get home
Drag the hour and the ring answers — it is addition, not an estimate.
Ready
960Wh
Battery capacity
38km/h
Top assist speed
500W
Rated motor power
The same charger fits all three bikes, so a spare is a spare for the household rather than for one bike.

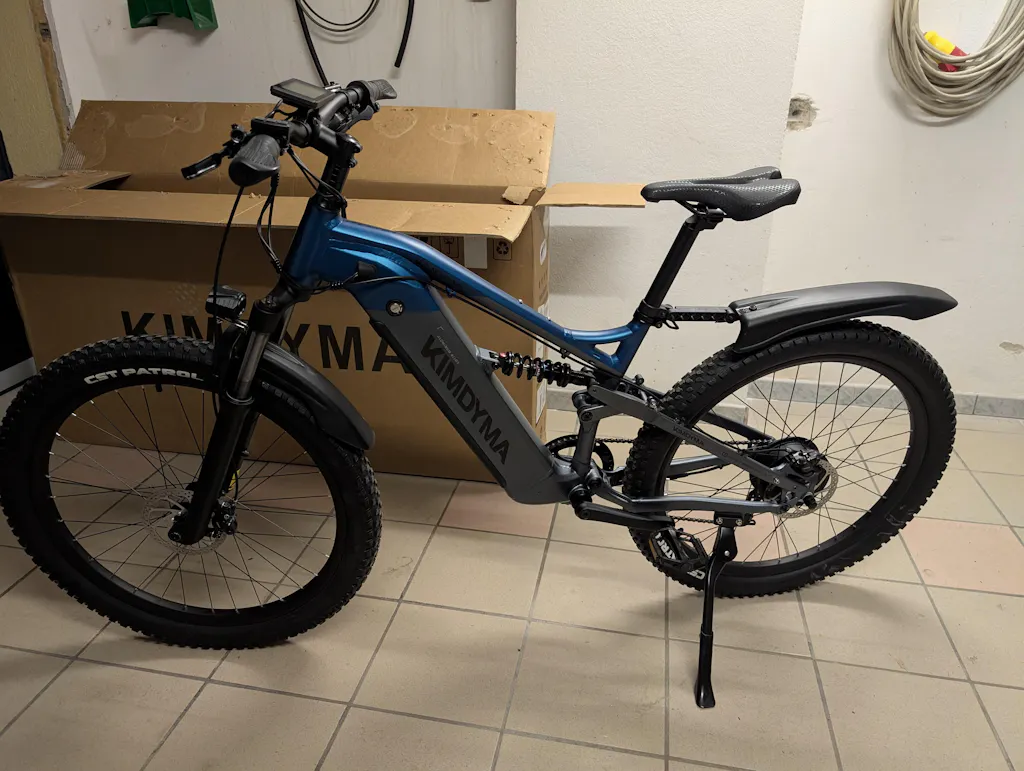

In their words
Reviews from people your size, on your bike
1.72 m commuting and 1.90 m on a trail are not saying the same thing about the same bike. Height, use, configuration — and the page already knows two of them.
5.0/5
2 reviews
Reading only — reviews are written in your account. Write a review
