Save €100,00
€1.499,00€1.599,00
Choose options
80Nm
Motor torque
960Wh
Battery capacity
130km
Maximum range
38km/h
Top assist speed
500W
Rated motor power
150mm
Suspension travel
Full specification
Every figure this bike has
Motor, battery, geometry, fit — grouped the way the compare table reads them. A parameter with no value on this bike prints nothing, so you see only what applies.
Drive
| Motor torque | 80Nm |
|---|---|
| Rated motor power | 500W |
| Peak motor power | 1000W |
| Top assist speed | 38km/h |
| Max gradient | 30% |
| Sensor type | Torque sensor |
| Torque spec |
|
| Assist modes | Turbo, Tour, Eco, Sport |

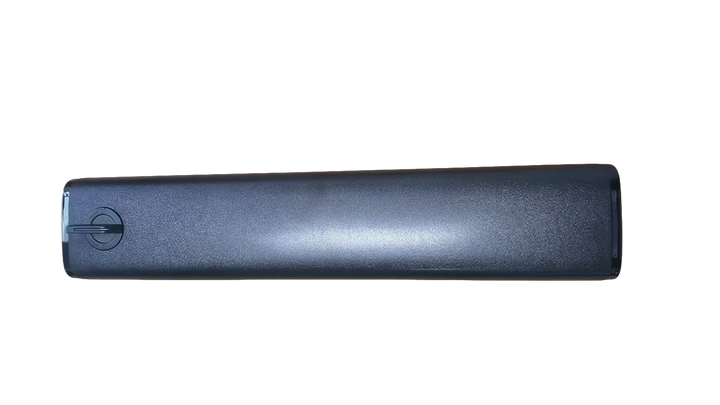

Battery & range
| Battery brand | Samsung |
|---|---|
| Battery capacity | 960Wh |

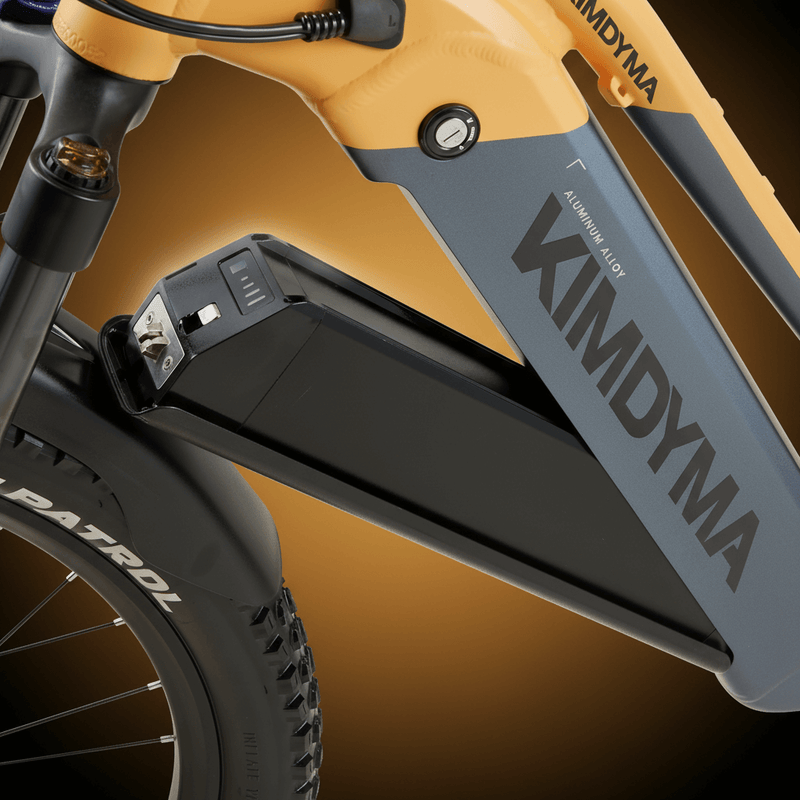

| Removable battery | Yes |
| Charge time | 6–8 hh |
| Maximum range | 130km |
Ride

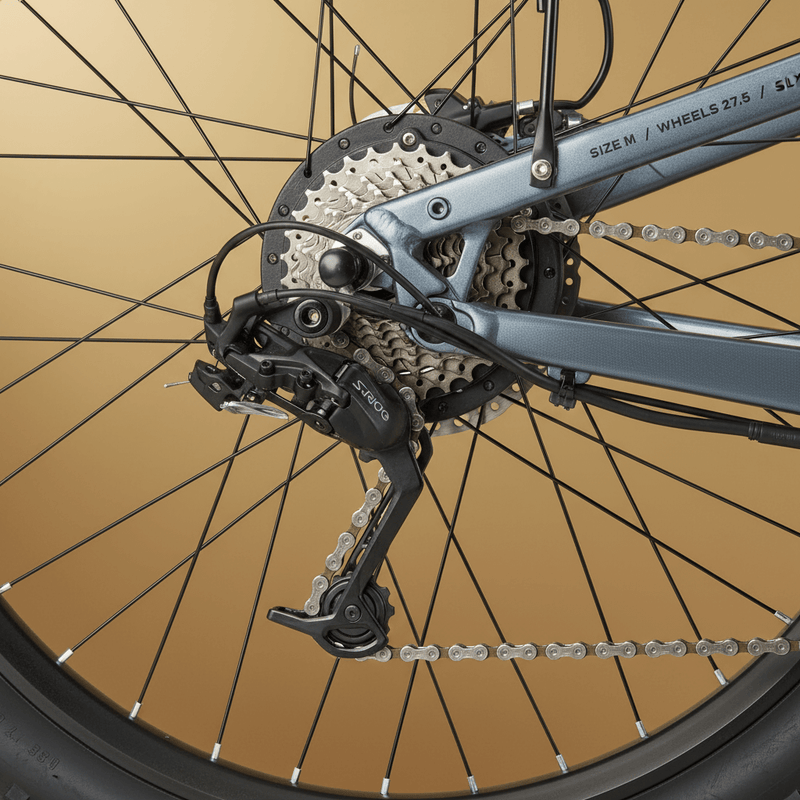

| Drivetrain | Traditional Chain & Derailleur |
|---|---|
| Gears | SHIMANO TX30 finger pull, TZ500 rear pull, crown front pull |
| Brakes | Shimano MT200 |
| Suspension travel | 150mm |
| Tire size | 27.5” × 2.8” |
| Display | KT LCD Display |
| Lighting | Front: External LED headlightRear: External tail light with brake activation |
Frame
| Frame material | Aluminum |
|---|---|
| Weight | 30.5kg |
| Maximum load | 150 kg (rider + bike + cargo)kg |
Geometry
| Reach | 610mm |
|---|---|
| Stack | 710mm |
| Wheelbase | 1220mm |
| Handlebar width | 1100mm |
| Seatpost | 770-990mm |
Fit
| Rider height | 158-178cm |
|---|---|
| Minimum rider height | 158cm |
| Maximum rider height | 178cm |
Certification
| Certifications | CE / EN 15194 / IPX5 |
|---|---|
| IP rating | IP65 |
Range figures are measured in eco mode on flat ground at 20 °C with a 75 kg rider and will differ in use.
In three parts
What makes the K02 this bike
Three features that define this model, each ending on measurements from the specification table below. If a claim cannot name a figure, it is not on this list.
500 W continuous, 38 km/h assist
Rated power is what the motor delivers steadily on a climb, not a peak figure that lasts three seconds. 500 W moves this bike and rider up a 30° gradient; 38 km/h is where the assist cuts out, and both are in the specification further down.
500W
Rated motor power
38km/h
Top assist speed
960Wh
Battery capacity
Climbs and range
30 % is the maximum gradient this bike will climb in assist, measured on tarmac with a 75 kg rider. 130 km is the maximum range on a single charge in eco mode, flat ground, 20 °C. Both figures are in the parameter sheet below.
30%
Max gradient
130km
Maximum range
80Nm
Motor torque

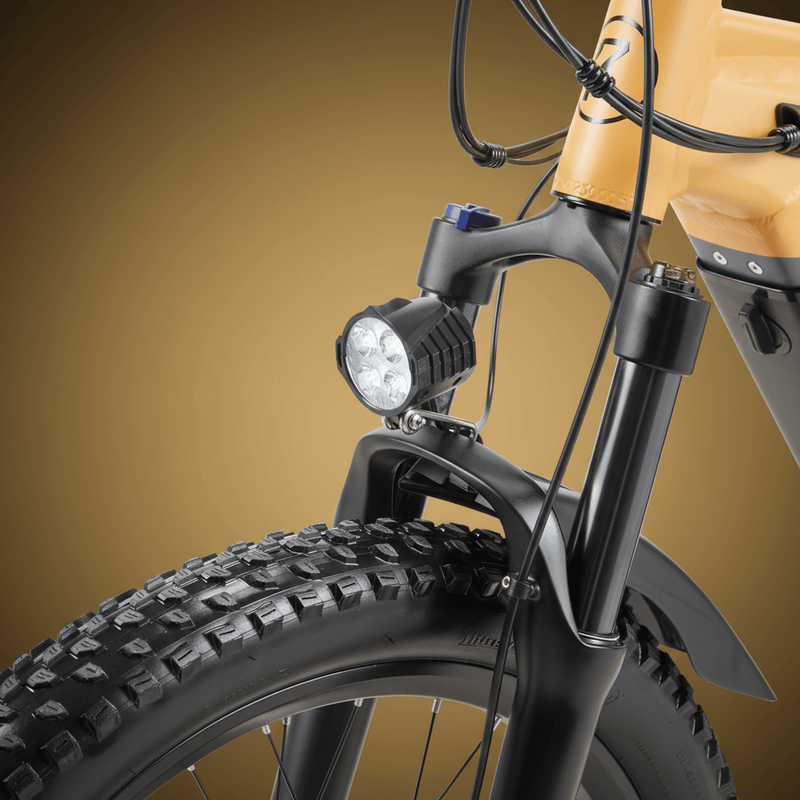

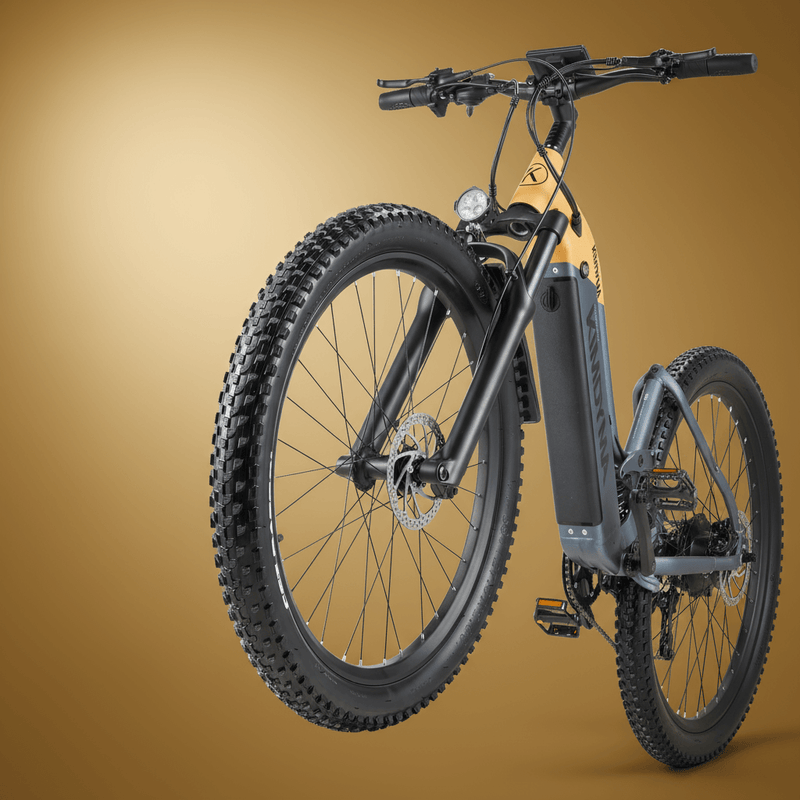

Suspension and tire size
150 mm is the suspension travel front and rear, measured at full compression. 27.5" × 2.8" is the tire size — diameter and width — and both figures are in the specification table below. The suspension absorbs trail impact; the tire width holds traction on loose ground.
38km/h
Top assist speed
150mm
Suspension travel
27.5” × 2.8”
Tire size

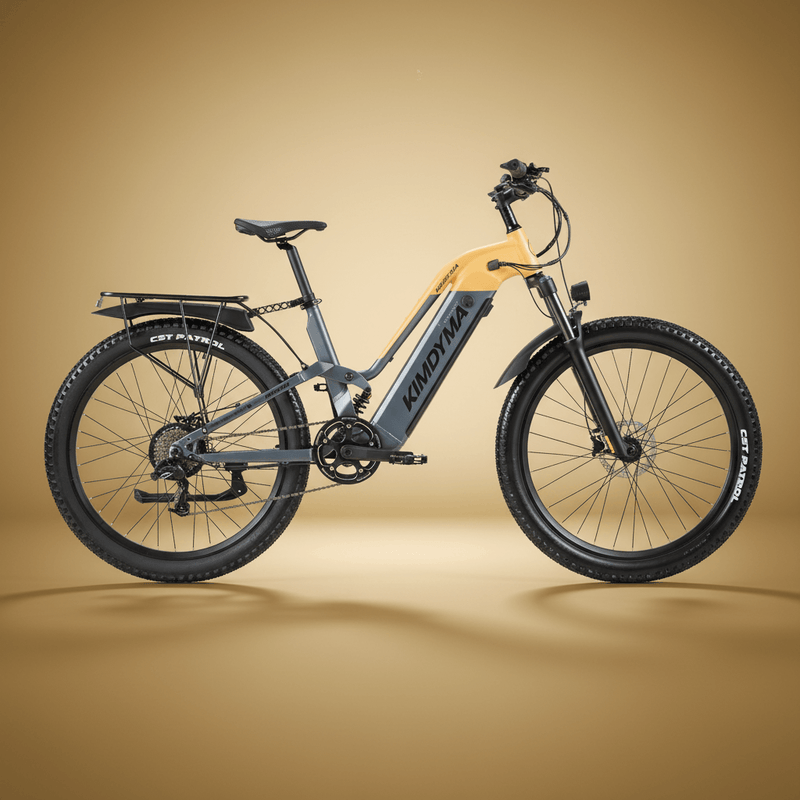

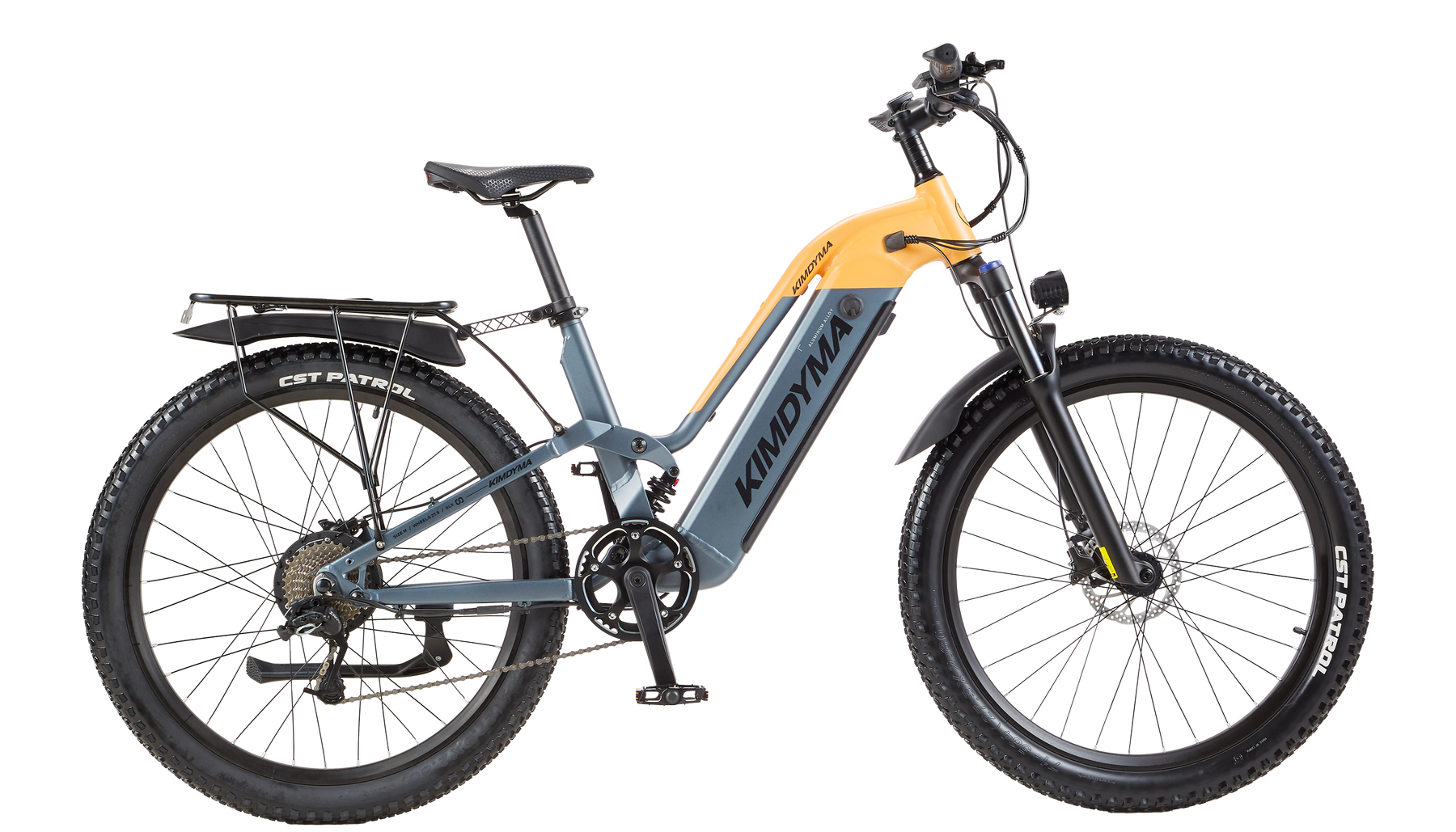

Step-through frame
Lower standover, easier mount — built around you
The frame drops at the top tube so you step through rather than over — no high swing, no awkward angle when you stop. Designed for riders 158-178 cm, with the same suspension travel and tire size as the K01, but shaped to fit a different range of motion.
960Wh
Battery capacity
38km/h
Top assist speed
500W
Rated motor power
Details
Five details that make the K02 fit women
Step-through frame, lower standover, adjustable reach — each one opens to show the measurement and why it matters for fit. The K02 shares the K01's motor and range; these five are what make it this bike.
1 / 5

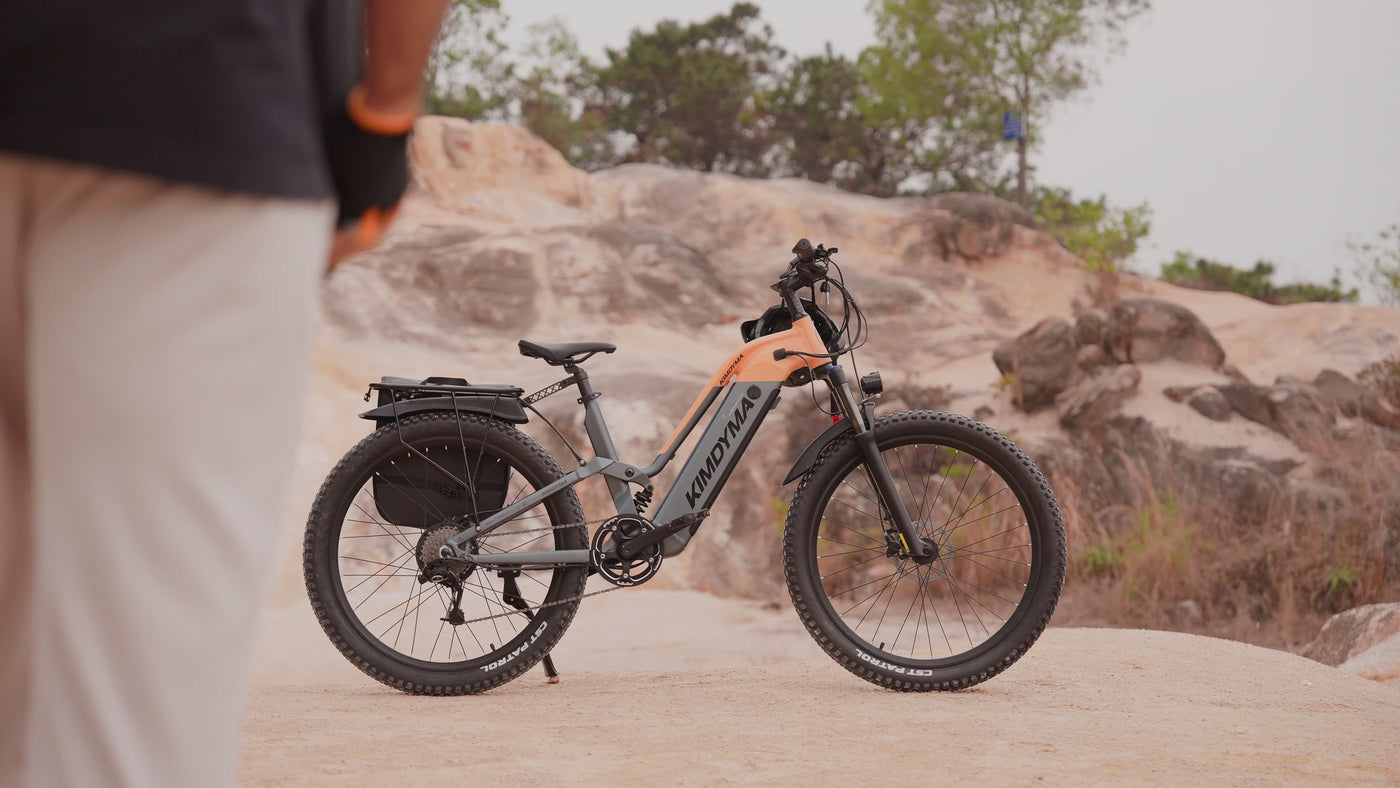

Where it is meant to go
Three surfaces, and one it is not for
A bike that claims every surface is a bike that has been described by its marketing rather than ridden.
Gravel
30 %
TrailNot for deep sand, snow, or mud — that is where the K03 RANGER's 26" × 4.0" fat tires take over.
How you sit on it
Step-through frame, 158–178 cm

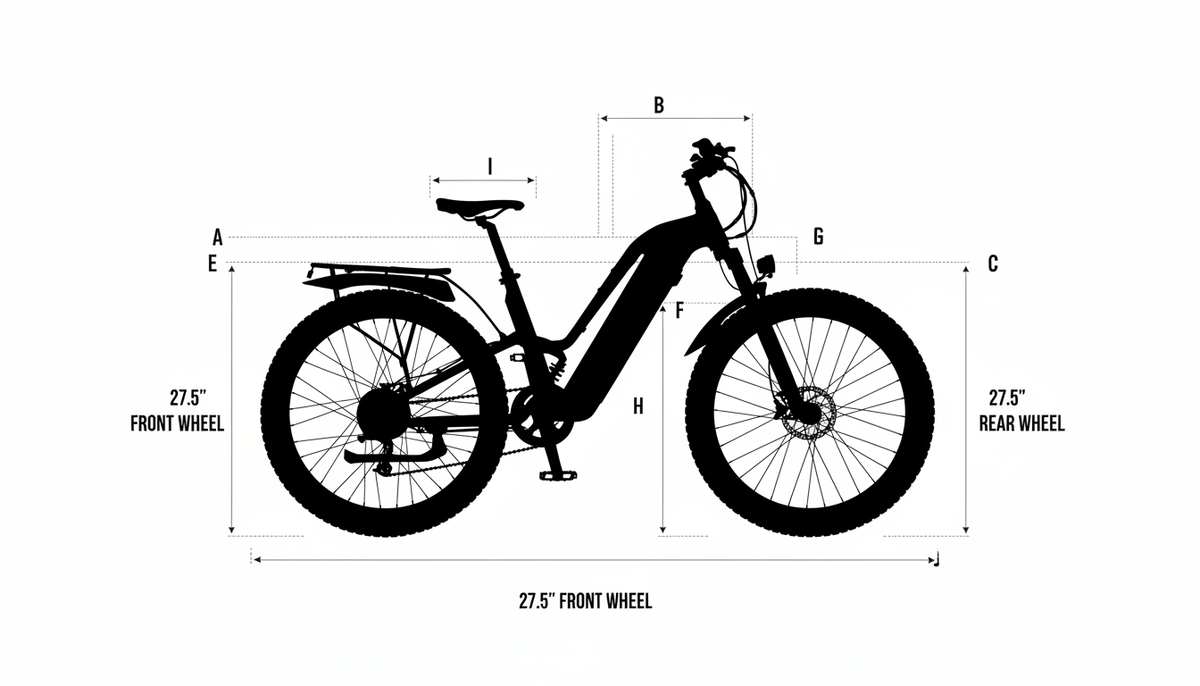

Stack is the height of the bars above the bottom bracket — 710 mm on the K02. It sets how upright you sit, and it is the main reason this frame fits 158–178 cm while the K01 fits taller riders. Drag your height to see where you land.
840
High-thru
710
Step-through
920
Fat-tyre
BarsStack is the vertical distance from the bottom bracket to the top of the head tube — it sets how high the bars sit relative to the pedals. A taller stack puts you more upright; a shorter stack leans you forward. K02's 710 mm stack fits riders 158–178 cm; K01's 840 mm fits 178–190 cm; K03's 1010 mm fits 190–200 cm. At 178 cm or 190 cm both frames answer, and the choice is yours.
What it will carry
Rated to the total, not to the luggage
It counts everything: you, what you are wearing, what is on the rack, and the bike itself before any of it.
of the rated total, with the bike's own weight already counted
The rated total is the only load figure this bike has. A rack weight limit, pannier capacity, or trailer rating that does not appear in the specification table below does not exist — and a calculator that invents one is making a claim on our behalf.
Four assist modes
What each mode does
Eco stretches the battery; Turbo climbs faster but drains it. Each step up trades range for power — the choice is how much of the pack a hill costs you.
100kmEcoLowest power draw, longest range. The motor adds just enough to flatten the road — you are still doing most of the work.
70kmTourBalanced power and range. The motor does half the work — enough to hold speed on gentle climbs without draining the pack on flat ground.
60kmSport60% assist — motor matches your effort more closely. Responsive on variable terrain but uses the battery faster than Tour.
35kmTurboMaximum power output — 100% assist. The motor delivers its full rated capacity to match your pedaling effort. Climbs are fastest here, but range drops sharply. This is the mode that costs you the most battery per kilometer.
Top assist speed is 25 km/h in most EU markets. The motor stops adding power at that point; you can pedal faster, but without assistance. Tampering with the speed limiter is illegal for road use in the EU and voids the warranty.
The charge clock
Plug it in when you get home
Drag the hour and the ring answers — it is addition, not an estimate.
Ready
960Wh
Battery capacity
38km/h
Top assist speed
500W
Rated motor power

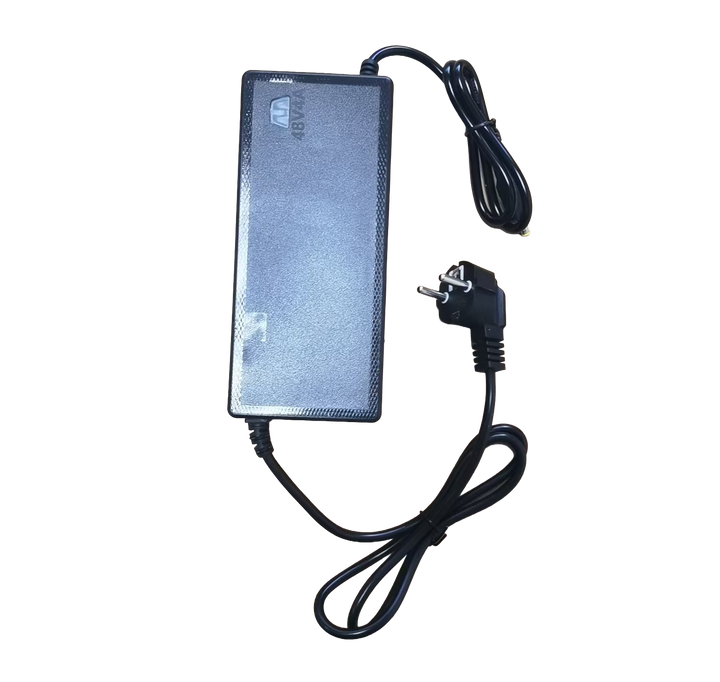

The same charger fits all three bikes, so a spare is a spare for the household rather than for one bike.
In their words
Reviews from people your size, on your bike
1.72 m commuting and 1.90 m on a trail are not saying the same thing about the same bike. Height, use, configuration — and the page already knows two of them.
