TITAN X K01 – Bici elettrica da 500W per uomo
TITAN X K01 – Bici elettrica da 500W per uomo
TITAN X K01 – Bici elettrica da 500W per uomo
TITAN X K01 – Bici elettrica da 500W per uomo
TITAN X K01 – Bici elettrica da 500W per uomo
80Nm
Coppia del motore
960Wh
Capacità della batteria
130km
Autonomia massima
38km/h
Velocità massima assistita
500W
Potenza nominale
150mm
Escursione

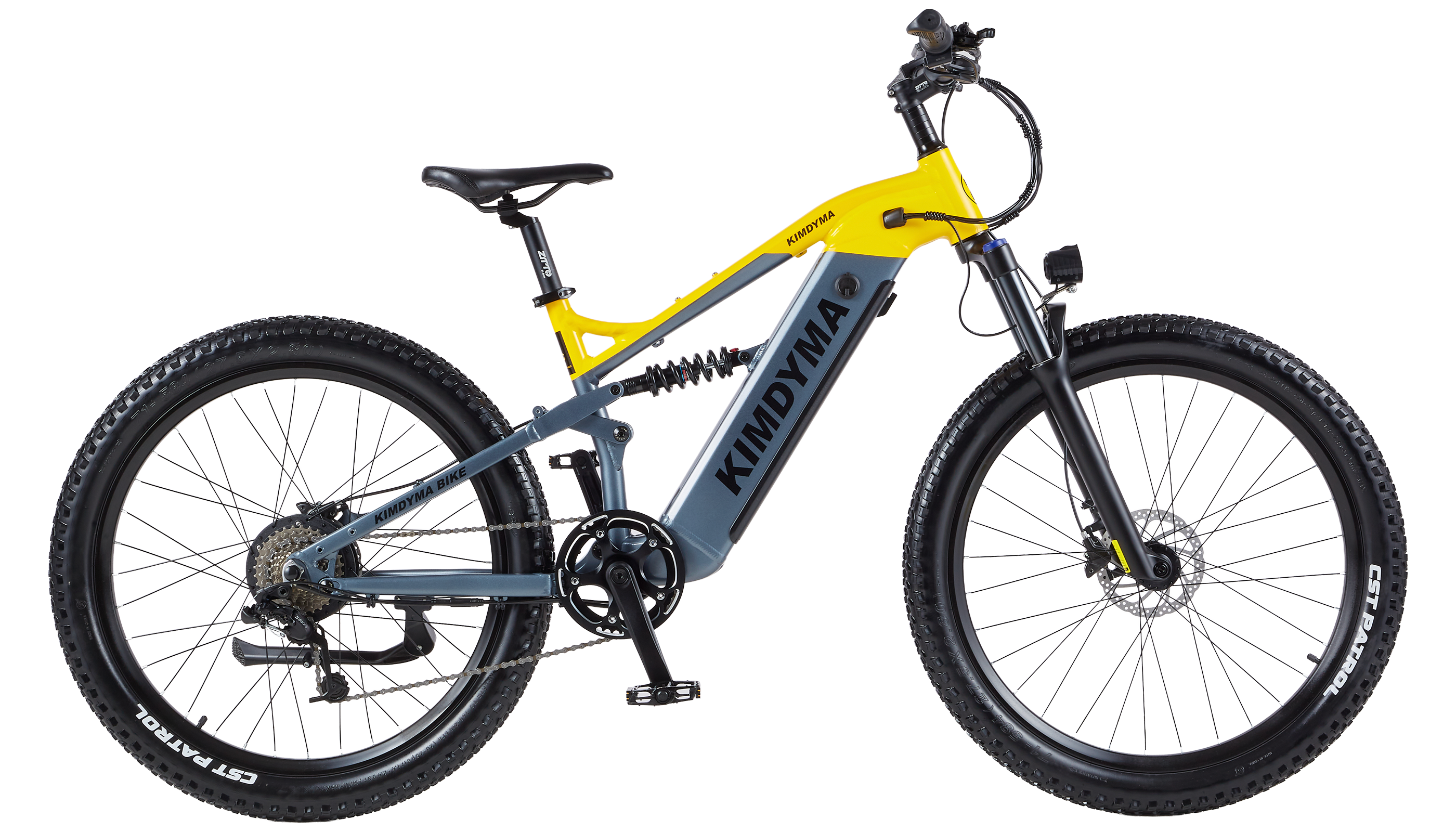

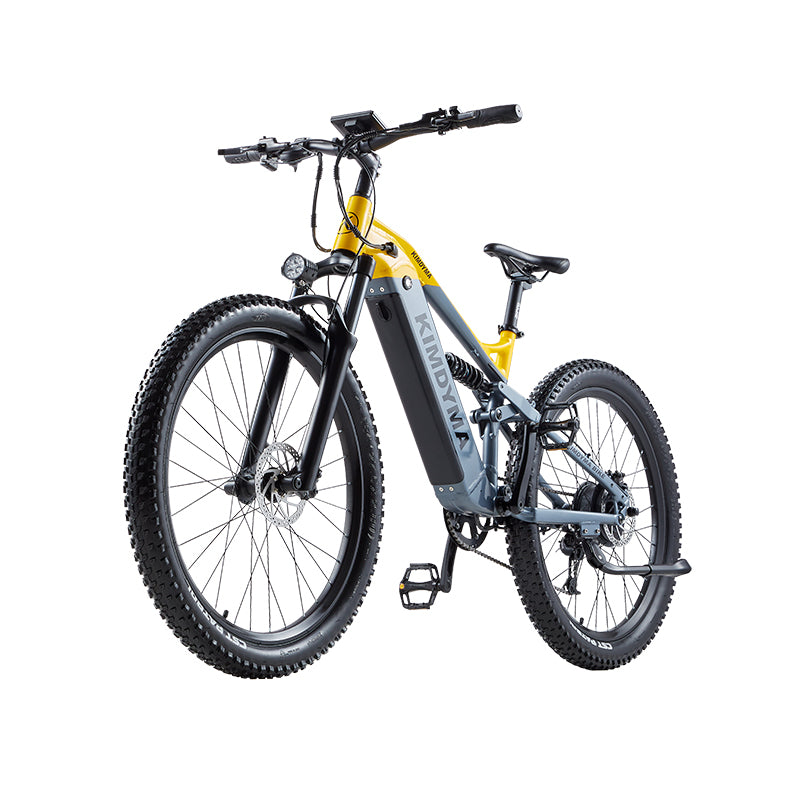

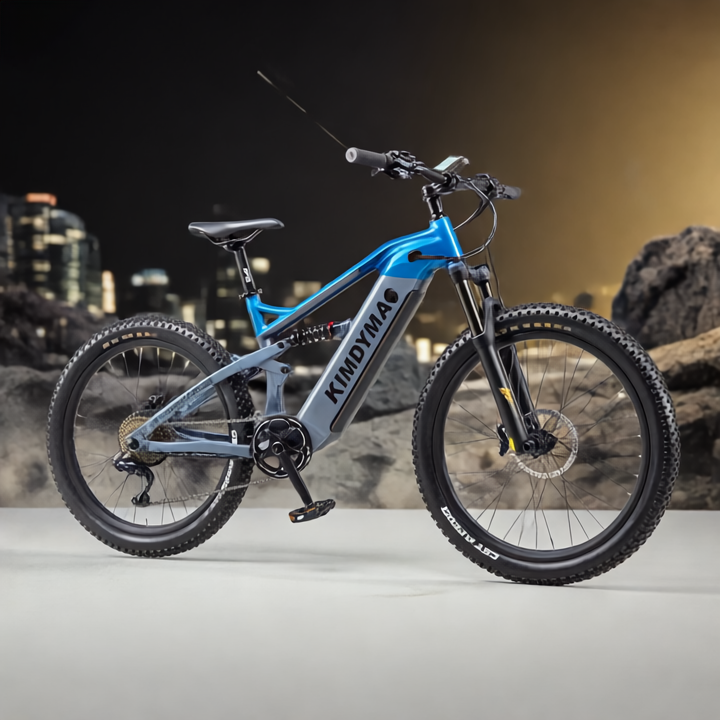

TITAN X K01

Bicicletta Elettrica Tutto Terreno

2 prove
€1.499,00€1.599,00Rateizzazioni al checkout, dove disponibili

Disponibile

Adatto a ciclisti 178-190

Dimensioni e vestibilità TITAN X K01
Dimensioni e vestibilità

Adatto a ciclisti 178-190

Trova la tua misura
Colore Blu Acciaio
Magazzino Polonia (UE)
€1.499,00 Bici + selezionati, IVA incl.

Le spedizioni dal magazzino del Regno Unito possono essere inviate dopo il 23 luglio.

  • Free delivery, assembled and road-tested
  • 2-year frame warranty, 1 year on motor and battery
  • 14 days to change your mind, collection included
  • Download the Guide and Operation Manual

Negozio ufficiale Kimdyma. Come riconoscere una Kimdyma originale

TITAN X K01 €1.499,00
In full

Complete specifications

Motor, battery, geometry, fit range — grouped the way the parameters are catalogued. A blank row means this bike does not have that feature.

Motore

Coppia del motore80Nm
Potenza nominale500W
Potenza di picco1000W
Velocità massima assistita38km/h
Pendenza massima30%
Tipo di sensoreSensore di coppia
Coppia di serraggio
  • Stem bolts 5Nm
  • Seatpost clamp 6Nm
  • Motor mount 12Nm
  • Axle / thru-bolt 40Nm
Livelli di assistenzaTurbo, Tour, Eco, Sport

Batteria e autonomia

Marca della batteriaSamsung
Capacità della batteria960Wh
Batteria estraibileSì
Tempo di ricarica6–8 hh
Autonomia massima130km

Ciclistica

TrasmissioneCatena tradizionale e deragliatore
RapportiDeragliatori anteriori e posteriori SHIMANO TX30/TZ500
FreniShimano MT200
Escursione150mm
Misura dei pneumatici27.5” × 2.8”
DisplayKT-LCD10H
IlluminazioneFaro anteriore a LED Posteriore: luce posteriore esterna con attivazione del freno

Cornice

Materiale del telaioAlluminio
Peso30.5kg
Carico massimo150 kg (pilota + bici + carico)kg

Geometria

Reach610mm
Stack840mm
Interasse1220mm
Larghezza del manubrio1110mm
Reggisella840-1100mm

Taglie

Altezza del ciclista178-190cm
Altezza minima178cm
Altezza massima190cm
Taglie del telaioM 44 cm, S

Certificazione

CertificazioniCE / EN 15194 / IPX5
Grado IPIP65
In the package
Telaio Titan X K01 ×1、batteria 960 Wh ×1、coppia di pneumatici 27,5" x 2,8" 3
Bici elettricaVeicolo completo
×1
Batteria48 V 20 Ah · 960 Wh · celle Samsung
×1
Pneumatico
×2
Luce anteriore、Display、Portapacchi posteriore、Cavalletto 3
luce anterioreLED
fitted
Display (per K01/K02)KT-LCD10H · monocromatico
fitted
Cavalletto
fitted
Caricabatterie、Pedale ×2、Chiave、Manuale utente、Kit attrezzi、Fascette 6
PedalePremi sul pedale
×2
keyChiave batteria
×1
Manuale d'uso
×1
Caricabatterie48 V 4 A · uscita 54,6 V · spina UE
×1
Kit attrezzi
×1
Fascette
×1
Parafanghi 1
ParafanghiOmaggio
×1

Anything marked fitted arrives on the bike and is not sold separately — it is part of what is shipped, not an accessory and not a gift. Everything with a count is boxed loose.

Range figures are measured in eco mode on flat ground at 20 °C with a 75 kg rider and will differ in use.

In three

What makes the K01 this bike

Three things that define this model, each ending on a measurement from the specification table below — not an adjective.

Un ciclista in sella a una mountain bike elettrica all-terrain Kimdyma ad alta velocità su un sentiero sterrato nel bosco, con sfocatura da movimento e 500 W rated output

500 W motor, 38 km/h assist

Rated power is the continuous output the motor can hold without overheating — the figure that matters on a long climb. Peak power is higher but cannot be sustained. Top assist speed is the point at which the motor stops adding power; you can pedal faster, but without assistance.

500W
Potenza nominale
38km/h
Velocità massima assistita
960Wh
Capacità della batteria
Un ciclista affronta una ripida salita sterrata di 30 gradi su una mountain bike elettrica all-terrain Kimdyma, ripreso da un'angolazione bassa al tramonto Torque sensor

Torque sensor

Reads how hard you push and scales assist to match — so the motor responds to effort, not just cadence. The difference shows on climbs and in traffic.

30%
Pendenza massima
130km
Autonomia massima
Sensore di coppia
Tipo di sensore
Una mountain bike elettrica all-terrain Kimdyma parcheggiata su un sentiero sterrato nel bosco, profilo laterale che mostra l'intero telaio contro 178–190 cm rider

Fit range and geometry

Seatpost adjusts from 840 to 1100 mm; wheelbase is 1220 mm. Both figures are in the geometry table below.

178-190cm
Altezza del ciclista
840-1100mm
Reggisella
1220mm
Interasse
960 Wh Samsung battery in the downtube
Aluminium alloy frame

960 Wh Samsung battery in the downtube

Removable with key lock. The same battery fits all three models in the range.

960Wh
Capacità della batteria
38km/h
Velocità massima assistita
500W
Potenza nominale
K01 detail

The parts that define this model

Torque sensor, Samsung battery, Shimano drivetrain — the components that make the K01 a trail bike. Press any part to see it full-size.

1 / 5
Primo piano del motore nel mozzo posteriore della mountain bike elettrica Kimdyma K01, che mostra il collegamento tra l'alloggiamento del motore e i raggi su uno sfondo sfocato K01 detail

Torque sensor

Fitted in the bottom bracket, the torque sensor measures pedal force and adjusts motor output in real time. The motor scales assist to match how hard you push — not just how fast you spin.

Removed and fitted with a splined bottom bracket tool.
Primo piano della batteria Samsung da 960Wh integrata nel tubo obliquo di una mountain bike elettrica Kimdyma K01, che mostra il K01 detail

Samsung 960 Wh battery

48V 20Ah Samsung lithium battery, removable with key lock. The same battery fits all three models in the range — K01, K02 and K03 share the charge port and mounting rail.

Range is measured in eco mode on flat ground at 20 °C with a 75 kg rider and will differ in use. Charge time is 6–8 hours from empty.
Primo piano del deragliatore posteriore Shimano TX30 della Kimdyma K01 e cassetta a 9 rapporti con catena KMC, che mostra i componenti della trasmissione K01 detail

Shimano drivetrain

The K01 runs a 9-speed Shimano drivetrain: TX30 and TZ500 derailleurs, SL-M3000 RapidFire shift lever, and a 42T steel chainring with bash guard. The chain is a KMC C9 heavy-duty model rated for e-bike torque.

Cassette is a Shimano-compatible freewheel, 14–28T.
Primo piano di uno pneumatico per mountain bike Kimdyma K01 che aderisce alla ghiaia e allo sporco su un sentiero boschivo, scattato da un'angolazione bassa con K01 detail

Tire grip

Wide 2.8-inch tread on 27.5-inch double-wall alloy rims. The width spreads load over loose ground; the tread pattern is cut for off-road grip and gravel traction.

Tire pressure affects ride feel and rolling resistance — check the sidewall for the range this tire can take.
Una bici elettrica Kimdyma K01 che percorre un sentiero boschivo roccioso, con la forcella della sospensione anteriore che si comprime mentre la ruota supera un ostacolo di pietra K01 detail

RST TNL 691-15 hydraulic fork

The RST TNL 691-15 is a hydraulic suspension fork with 150 mm of travel. Lockout is controlled by the lever on the crown; rebound damping is adjusted by the knob at the bottom of the right leg.

Preload is also adjustable — turn the collar at the top of the left leg to increase or decrease spring tension.
Where it is meant to go

Three surfaces, and one it is not for

A bike that claims every surface is a bike that has been described by its marketing rather than ridden.

Un ciclista in sella a una mountain bike elettrica Kimdyma K01 ad alta velocità su una strada sterrata, che solleva polvere e piccoli sassi, Gravel road
Gravel roads and forest trails27.5" × 2.8" tyres and 150 mm suspension travel. Wide enough for loose surfaces, not so wide the bike becomes slow on packed ground.
Un ciclista in sella a una mountain bike elettrica Kimdyma K01 in salita su un sentiero sterrato con ghiaia, circondato da bassi arbusti, ripreso da 2°
Sustained climbs up to 30°The 500 W rated motor output is continuous power — the figure that holds on a long climb without thermal cutoff. Maximum gradient is measured at 75 kg rider weight on dry pavement.
Un ciclista in sella a una bici elettrica Kimdyma K01 a velocità sostenuta su un sentiero di montagna in ghiaia sconnesso, con polvere e piccoli sassi sollevati da Rough road
Broken pavement and rutted tracks150 mm front suspension travel and 27.5" × 2.8" tyres. The suspension absorbs impact from broken surfaces; tyre width provides grip without the drag of a fat tyre on hard ground.

Not for snow or sand. The K03 Ranger carries 26 × 4.0 fat tires for that.

How you sit on it

Stack decides which frame fits your height

Stack is how high the bars sit above the bottom bracket. It is the difference you feel before you turn a pedal. Drag your height to see which frame answers.

840 High-thru
710 Step-through
910 Fat-tyre

BarsStack is the vertical distance from the bottom bracket to the top of the head tube — it sets how high the bars sit relative to your feet. A taller stack means a more upright position; a shorter stack puts you forward. The K01's stack is 840 mm, which places the bars at 1110 mm above the ground when the stem is fitted. This figure comes from the geometry table and defines the 178–190 cm rider band.
What it will carry

Rated to the total, not to the luggage

It counts everything: you, what you are wearing, what is on the rack, and the bike itself before any of it.

  of the rated total, with the bike's own weight already counted

This bike is not designed for trailer towing. For cargo capacity questions beyond the rated total, contact us.

Four assist modes

What each mode does

Eco stretches the battery; Turbo climbs faster but drains it. Each step up trades range for power — the choice is how much of the pack a hill costs you.

100kmEcoLowest power draw, longest range. The motor adds just enough to flatten the road — you are still doing most of the work.
70kmTourBalanced power and range. The motor does half the work — enough to hold speed on gentle climbs without draining the pack on flat ground.
60kmSport60% assist — motor matches your effort more closely. Responsive on variable terrain but uses the battery faster than Tour.
35kmTurboMaximum power output — 100% assist. The motor delivers its full rated capacity to match your pedaling effort. Climbs are fastest here, but range drops sharply. This is the mode that costs you the most battery per kilometer.

Top assist speed is 25 km/h in most EU markets. The motor stops adding power at that point; you can pedal faster, but without assistance. Tampering with the speed limiter is illegal for road use in the EU and voids the warranty.

The charge clock

Plug it in when you get home

Drag the hour and the ring answers — it is addition, not an estimate.

  Ready
960Wh
Capacità della batteria
38km/h
Velocità massima assistita
500W
Potenza nominale

The same charger fits all three bikes, so a spare is a spare for the household rather than for one bike.

In their words

Reviews from people your size, on your bike

1.72 m commuting and 1.90 m on a trail are not saying the same thing about the same bike. Height, use, configuration — and the page already knows two of them.

5.0/5 2 prove
Altezza: Tutte
Altezza
Percorso per: Tutte
Percorso per
Configurazione: Tutte
Configurazione
Tipo: Tutte
Tipo
