48V Motor Controller – Replacement
48V Motor Controller – Replacement
48 V
Voltage
10 A
Rated current
20 ± 1 A
Maximum current
Spare parts

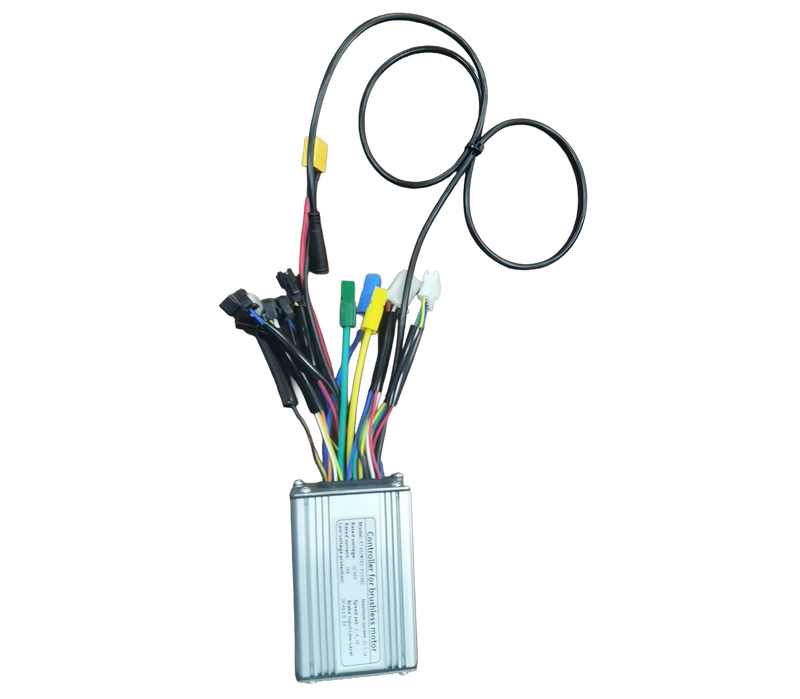

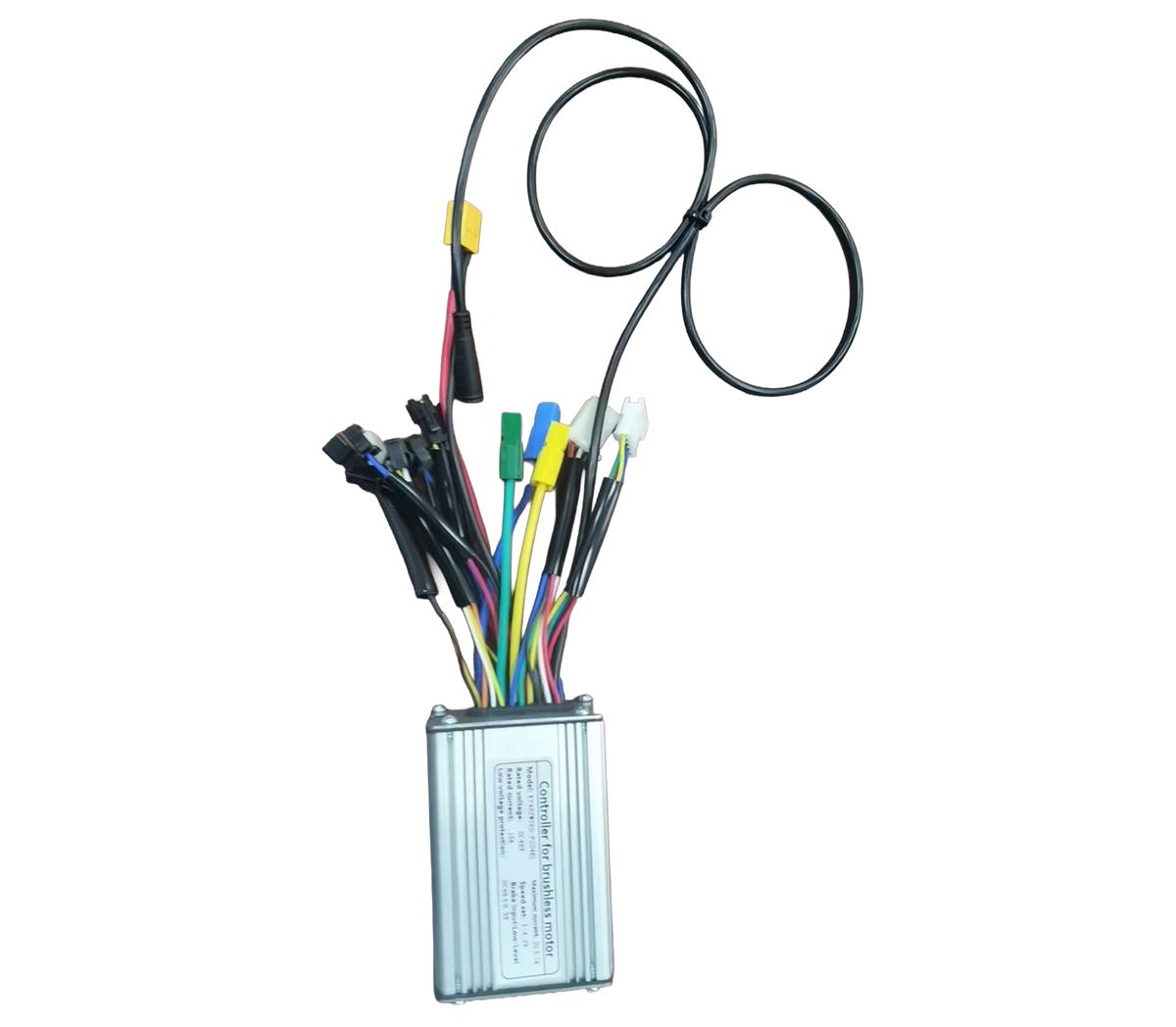

48V Motor Controller – Replacement

The factory 48V controller for the Kimdyma K01, K02 and M1, for when support has confirmed the old one has failed. 10 A rated and 20...

€89,00 Incl. VAT
model K01&K02&M1
Will it fit?
Pick your bike
Fits 3 of our bikes. Pick yours to check.

In stock · dispatched the same working day

  • Free delivery
  • 5–14 working days
  • Check with us first — we confirm it is the controller
  • Spare part — no warranty, no returns
Before you order

Which bikes it goes in.

A bike that will not move is more often a brake cut-off, a throttle or a loose plug than a dead controller. Send us a photo of the display and we will tell you which it is — before you spend money on a part that cannot be returned.

K03 RANGER Dual Motor 1500W Fat Tires Electric Bike
The K03 runs two motors and a different controller. Does not fit
M1 ARETE – 500W Full-Suspension Electric Mountain Bike
Same controller as fitted at the factory. Plugs straight in. Fits
AURORA S CITY K02– 500W Electric Bike for Women
Same controller as fitted at the factory. Plugs straight in. Fits
TITAN X K01 – 500W Electric Bike for Men
Same controller as fitted at the factory. Plugs straight in. Fits

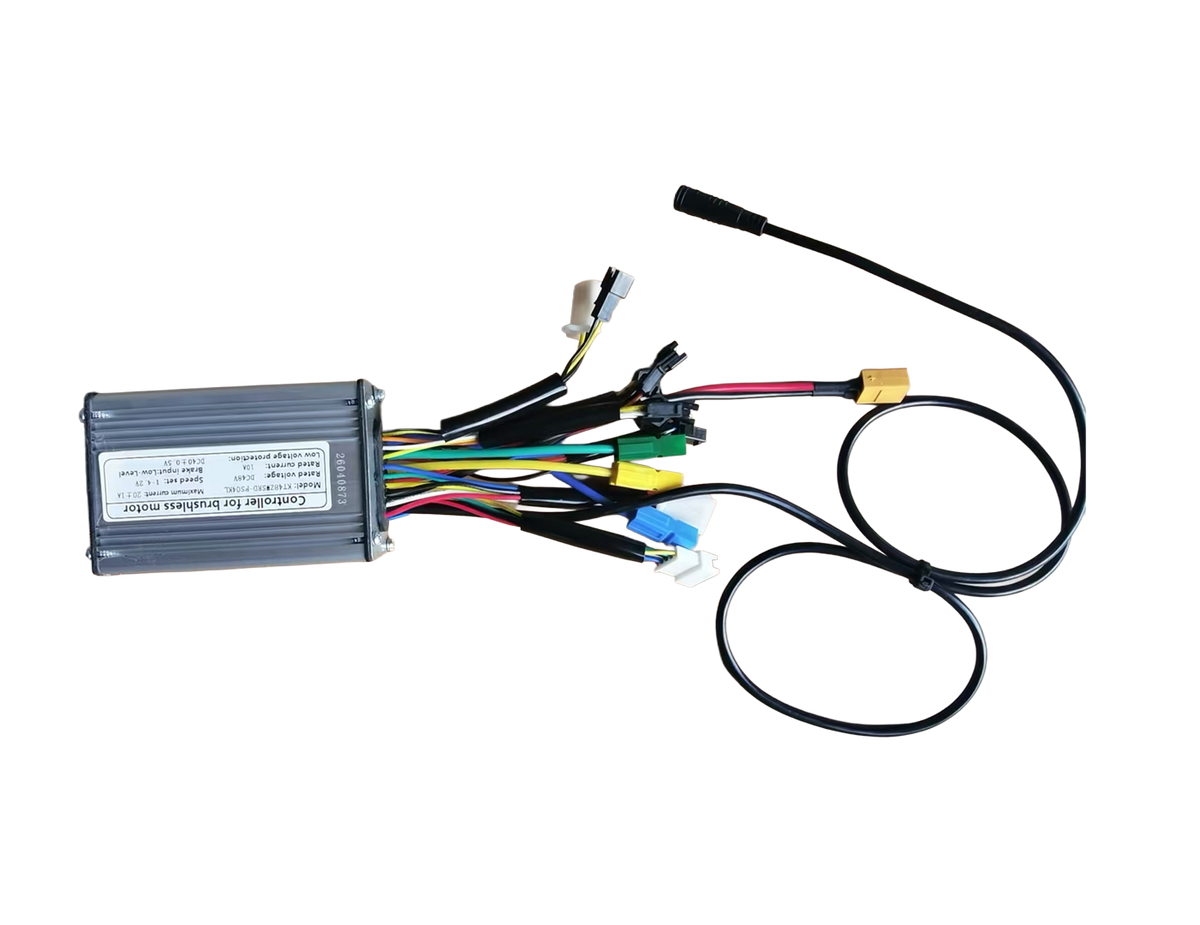

Fitting it yourself

Sixteen plugs, each one only fits one way.

Every lead is colour-matched and keyed, so a plug that goes in is a plug in the right place. Take the battery out first, photograph the old controller before you disconnect it, and swap one lead at a time.

16 plugs on 12 leads Battery out before you start.

Would rather not? Any partner workshop swaps it while you wait. Find a workshop

The numbers

Check these against the label on your old one.

Voltage 48 V
Rated current 10 A
Maximum current 20 ± 1 A
Low-voltage cut-off 40 ± 0.5 V
Battery plug XT60
Motor phase plugs 3 × Anderson (blue, green, yellow)
Hall sensor plug 6-pin
Display plug SM-5A, 5-pin
Brake input Low-level, 2 × SM-2A
Throttle input 1–4.2 V, SM-3Y
Accessory power out 2 × SM-2Y
